Our Products

Product List

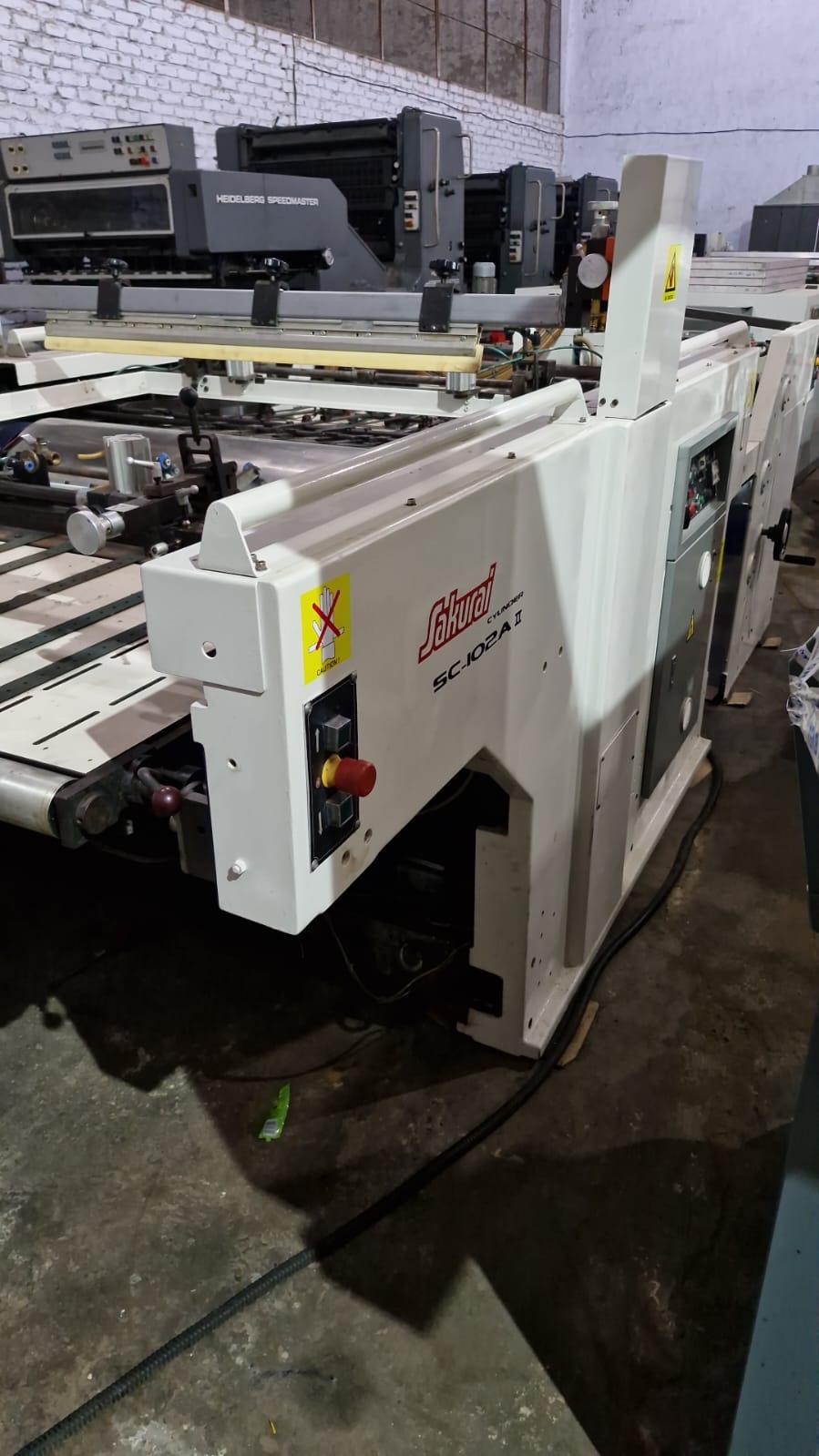

SAKURAI SC 102 A2

Size- 1020 X 720 mm

SAKURAI SC 102 A2 ( built year 2007 )
Natgraph U.V tunnel with 2 lamp ( year 2007)
Serinduscria Stacker Delivery
with 10 Screen frames together
Technical specifications:
maximum mechanical speed: 1000 - 3000 sheets / hour, maximum sheet size: 1020 x 720 mm, minimum sheet size: 560 x 370 mm
speed print (IPH) 900 ? 3,300
print thickness 0.1 ? 0.8

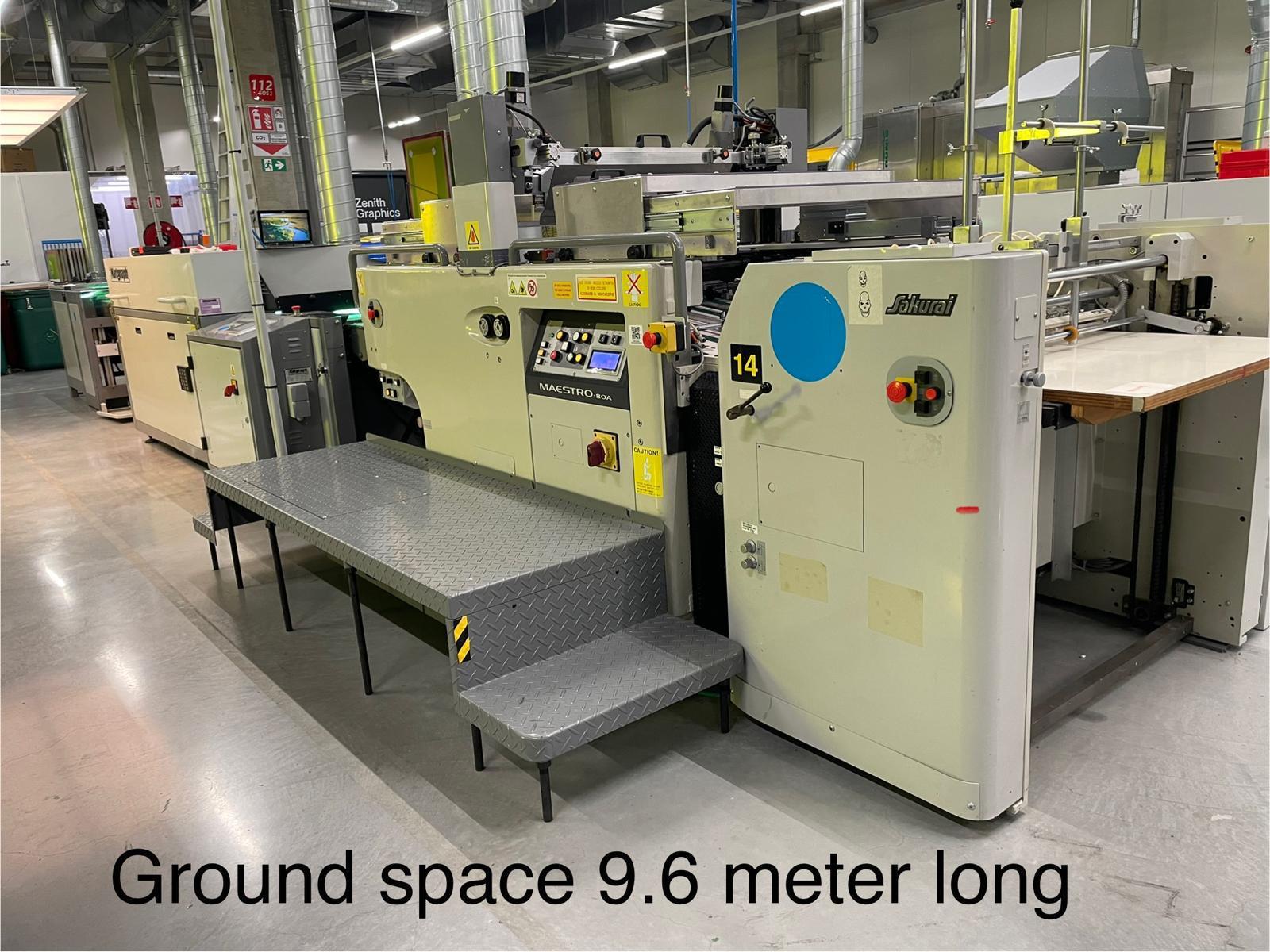

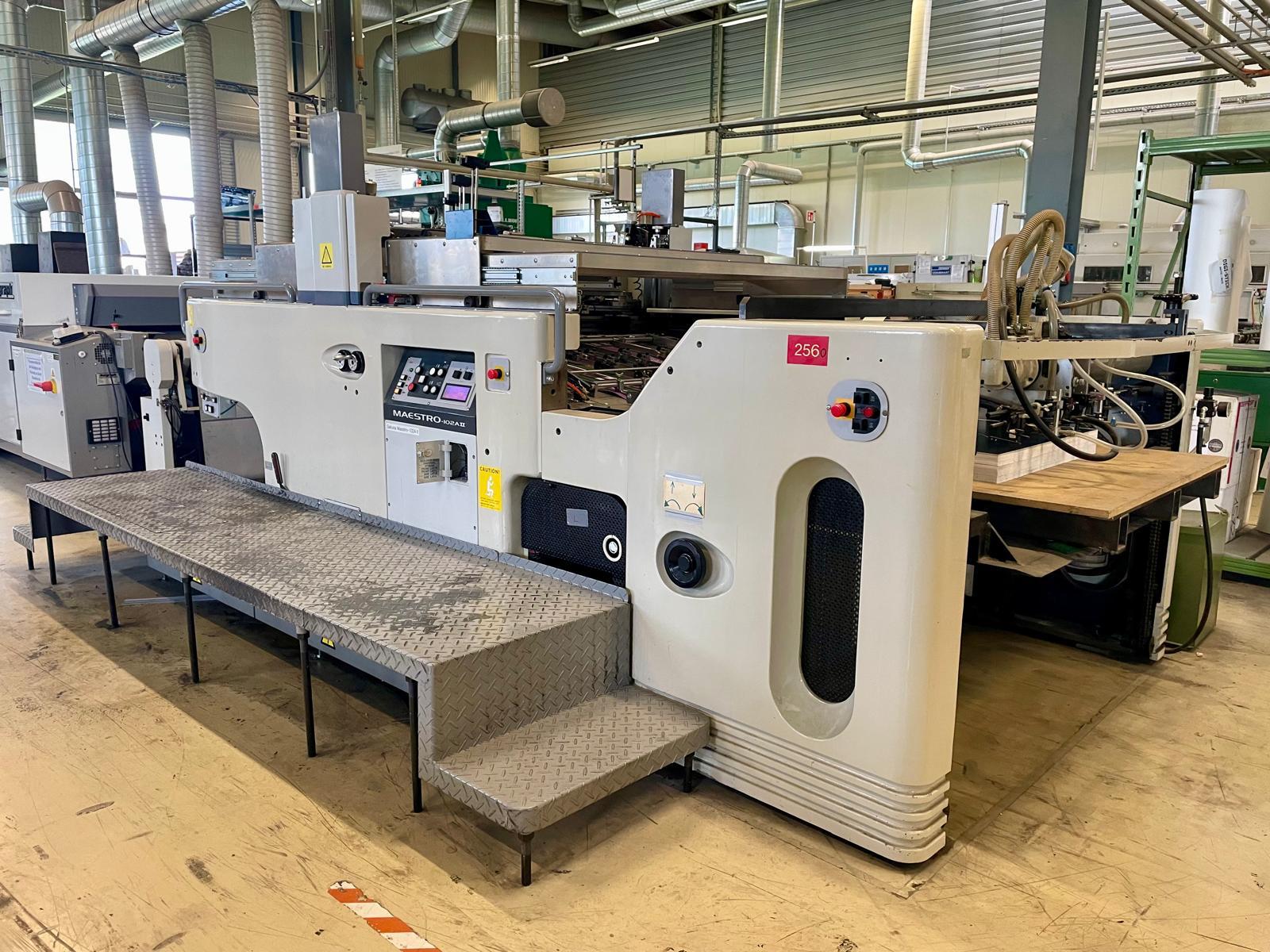

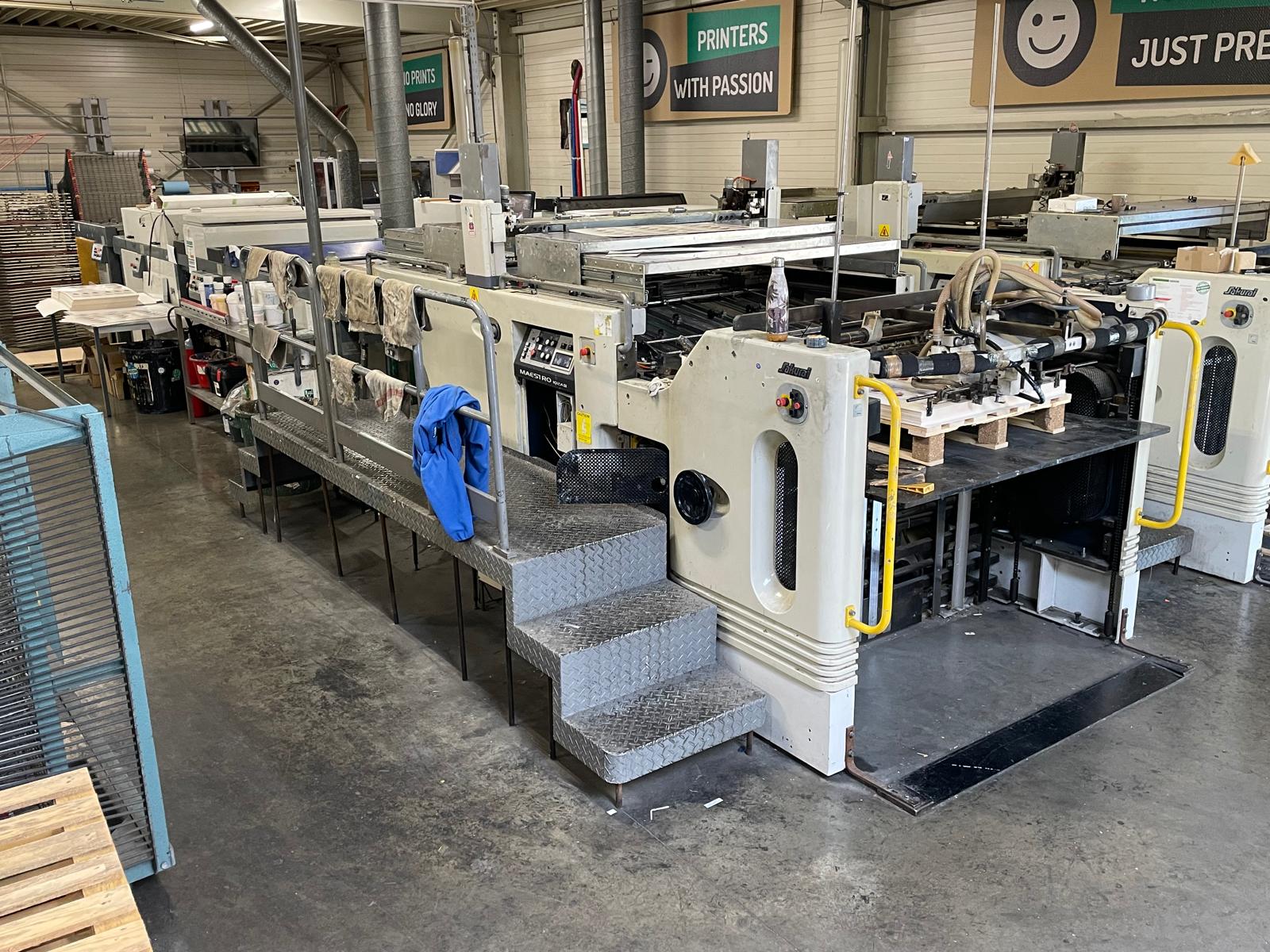

SAKURAI MAESTRO MS-102 AII

Size- 1050 X 750 mm

Fully Automatic Screen Printing Machine

Max. Sheet Size 1050 x 750 mm, Min. Sheet size 420 x 297 mm, Stop Cylinder, Stream Feeder, mechanical double sheet detector, 2 antistatic bars,

Trumax Combi UV Curating Unit and Hot Air, Trumax Stacker,

Speed (feeder) 400- 3000 (PPH)

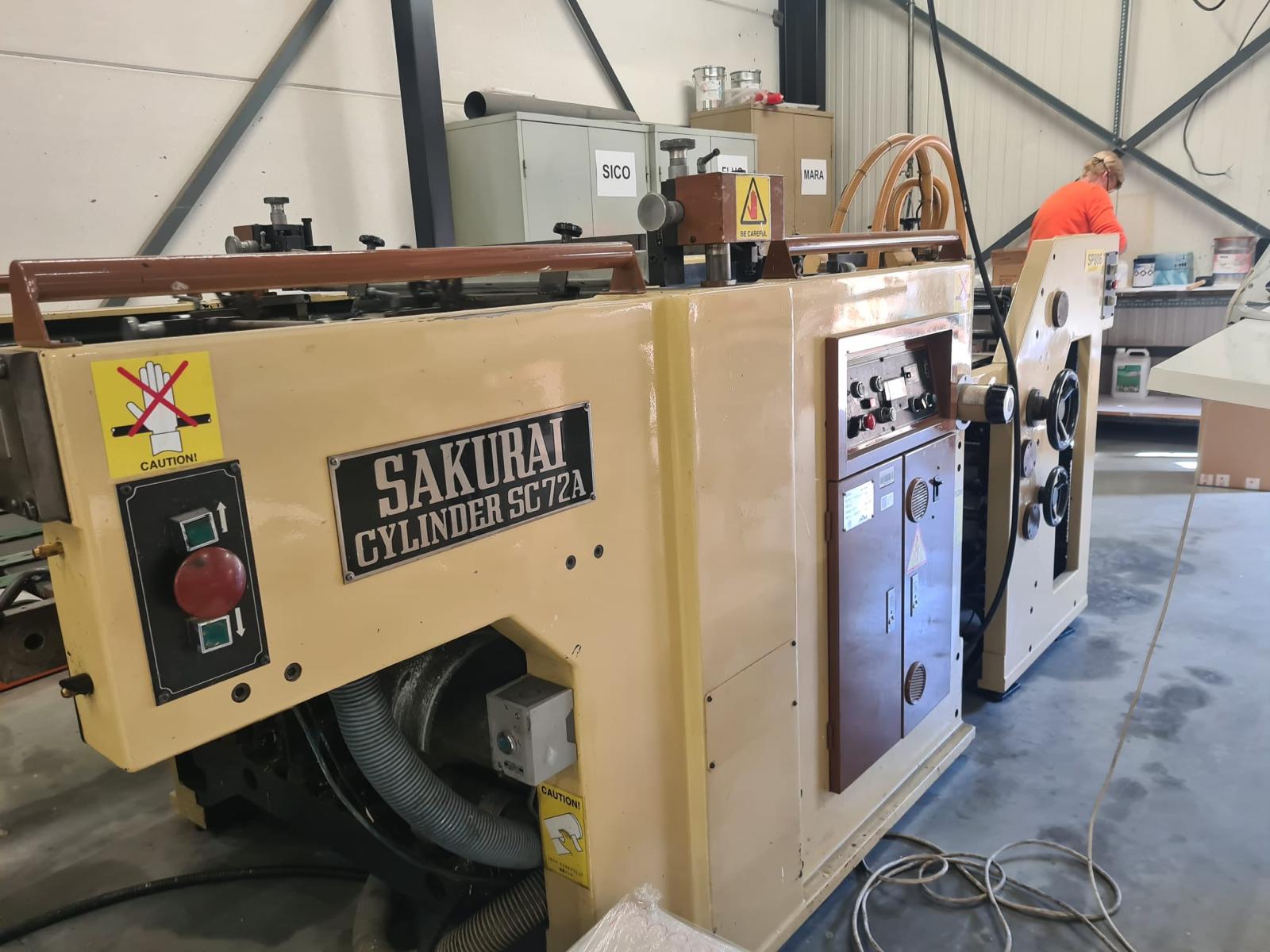

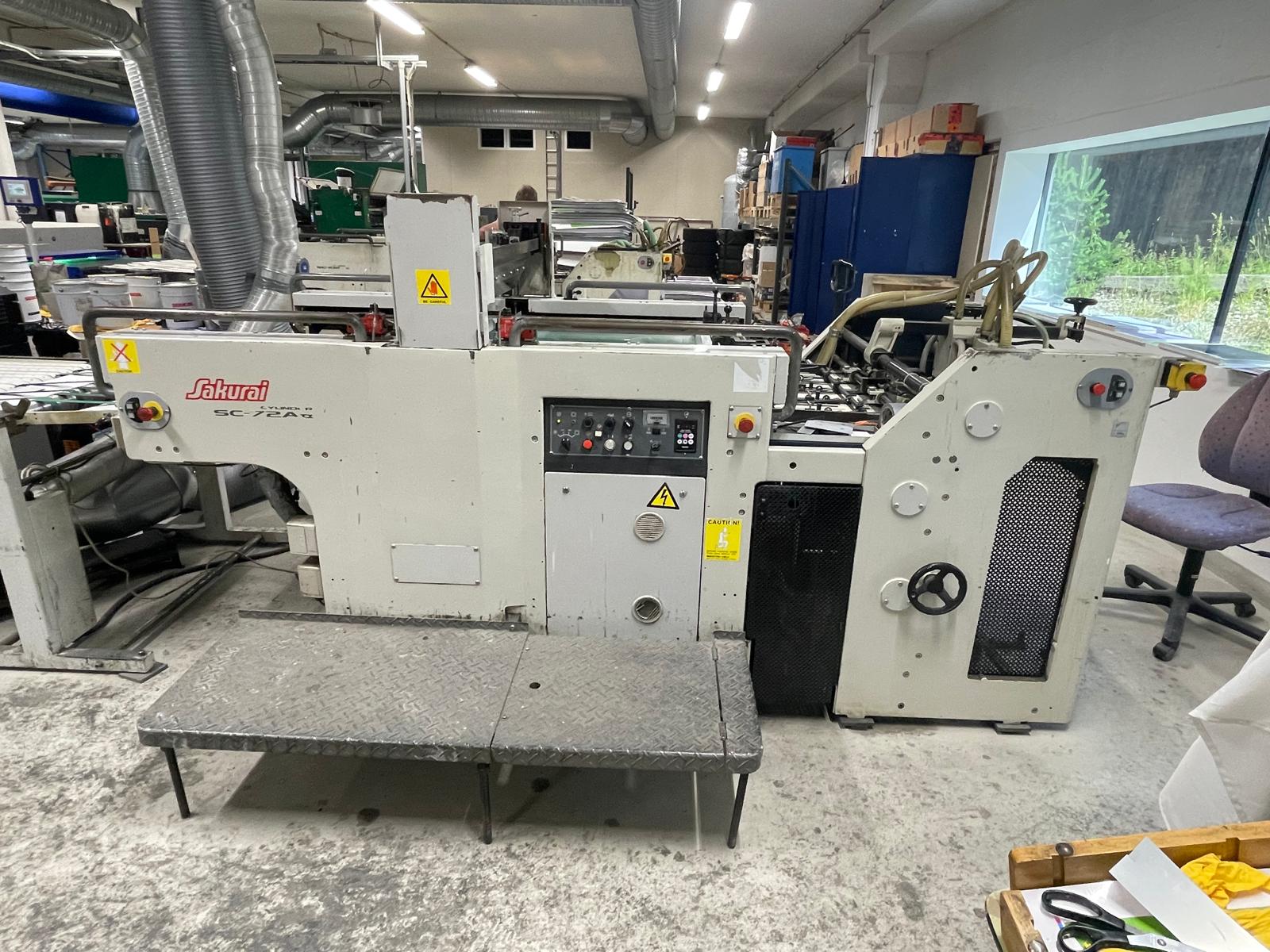

SAKURAI SC 72 A

Size- 520 X 720 mm

Screen Printing Machine , without UV , with standard accessories

THIEME 510 SCREEN PRINTING MACHINE

Size- 550 X 750 mm

Flatbed Screen Printing machine, with Small UV delivery, with standard accessories

THIEME TSC 130 Sqeegee Cutter

Size- TSC13011004010599

THIEME TSC 130 Squeegee Cutter - Improved printing quality with a factory-smooth edge  Rotating knife cutting only a 0,8 mm thin strip of material Cooling lubricant guarantees precise cut of squeegee edge One cut for the perfect result No tiresome grinding dust Improved printing quality Increased endurance of squeegee edge Decreased solvent absorption Increased production performance  Type of machine 130 Cutting length [mm] 1300 Squeegee thickness [mm] 5-10 Dwell time of knife* [m] approx. 500 Coolant consumption [l/m] approx. 0,04 Power supply [V] 400 V, 50 Hz, 3 phases Circuit connection [kW] 1 Compressed air [bar] 6 Compressed air consumption [l/min] approx. 2,5 Overall machine dimensions T x H [mm] 784 x 1250 Overall machine dimensions L [mm] 2500 Weight [kg] 370  All technical information is not binding and subject to change. Is not printing machine, is Squeegee Cutter to used in screen printing

ESPON STYLUS PRO 7900

Used Printing for Screen Printing film. year 2012 Imported from Europe with standard accessories
